A recent report by NASA's Office of Inspector General (OIG) has revealed new details about the problems plaguing the Orion spacecraft, including its heat shield and other critical systems. The report, released on May 1, reviewed the uncrewed Artemis 1 mission launched in late 2022 and identified several issues that have delayed the first crewed launch, Artemis 2, until at least September 2025.
Heat Shield Problems

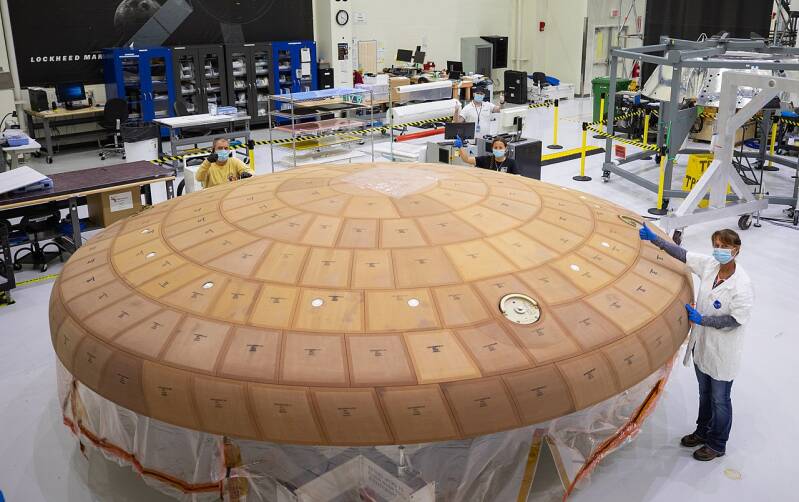

One of the most significant issues is with the Orion heat shield, which experienced more extensive damage than expected during reentry. The ablative heat shield material, known as Avcoat, "chipped away unexpectedly" in over 100 locations, creating a pockmarked surface. The material wore away differently than predicted, cracking and breaking off in fragments, rather than melting away as designed. This unexpected behavior creates a risk that the heat shield may not sufficiently protect the capsule's systems and crew from extreme heat during future missions.
NASA is still investigating the root cause of the heat shield material's behavior, despite successfully recreating the char loss in ground tests. The agency has yet to reproduce the exact material response or flight environment experienced during Artemis 1.
Other Issues
Besides the heat shield issues, the report highlighted several other concerns that need to be addressed. One of these issues was the unexpected melting and erosion of three out of four separation bolts on the base of the heat shield. These bolts are crucial for separating the service module before reentry, and their malfunction could have severe consequences. NASA plans to redesign the separation bolt on later Orion spacecraft, but for Artemis 2, they will install additional thermal protection material in the bolt gaps as a temporary solution.
Another issue identified in the report was a power distribution unit problem on the service module. This was caused by radiation exposure, which led to a malfunction in the unit's latching current limiters. NASA has addressed this issue by making changes to the flight software and operations procedures. However, this incident highlights the importance of radiation protection in deep space missions, where spacecraft are exposed to harmful radiation for extended periods.
Communication is critical during space missions, and any disruption can have severe consequences. The report noted a problem with a Deep Space Network station in California, which resulted in a 4.5-hour loss of communications with Orion during the Artemis 1 mission. This issue was caused by a technical glitch at the station and has since been resolved. However, it emphasizes the need for redundant communication systems and backup plans to ensure uninterrupted communication during critical phases of the mission.
Finally, the report mentioned damage to the mobile launch tower due to low-frequency acoustics and inadequate blast doors. The tower's elevators were damaged during the launch, and repairs cost $26 million, significantly more than the initial estimate of $5 million. This incident highlights the importance of accurate modeling and testing of launch systems to prevent such damage in the future. The "blast doors" intended to protect the elevators were found to be fiberglass doors designed only to shield them from wind, not the intense acoustic environment of a rocket launch. This oversight has been addressed, and NASA will ensure that similar mistakes are not repeated in future launches.
Recommendations and Response
The OIG report provided six recommendations for addressing these issues, which NASA accepted. However, the agency expressed concerns that the audit caused disruptions to ongoing workflow and priorities and that the report was overly focused on engineering details rather than risk management.
The OIG defended its approach, stating that providing timely recommendations aimed at ensuring astronaut safety is a vital responsibility. NASA is working to address these issues, with a planned completion date of June 30 for understanding the heat shield performance.
The delays and issues with the Orion spacecraft highlight the challenges and complexities of deep space exploration. As NASA continues to work towards returning humans to the Moon and eventually sending them to Mars, addressing these technical challenges is crucial to ensuring the safety and success of future missions.
